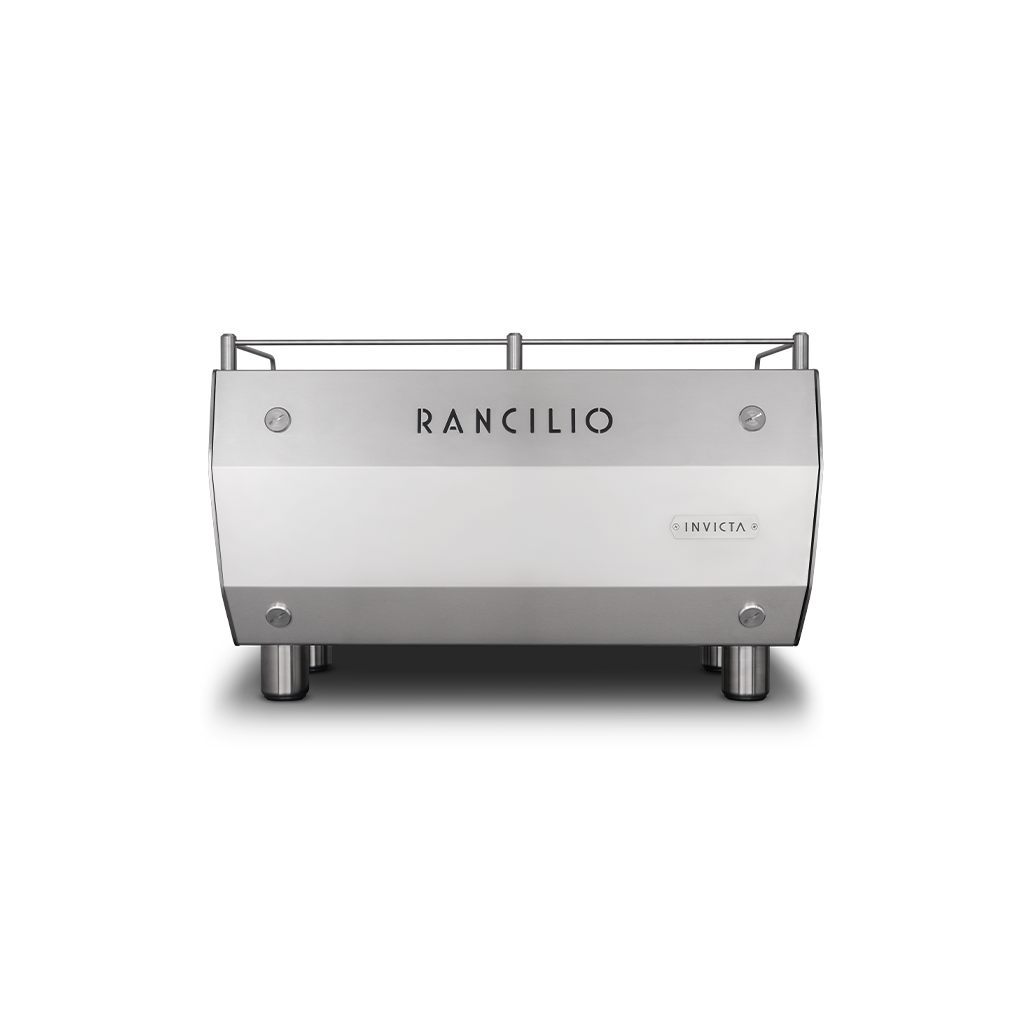

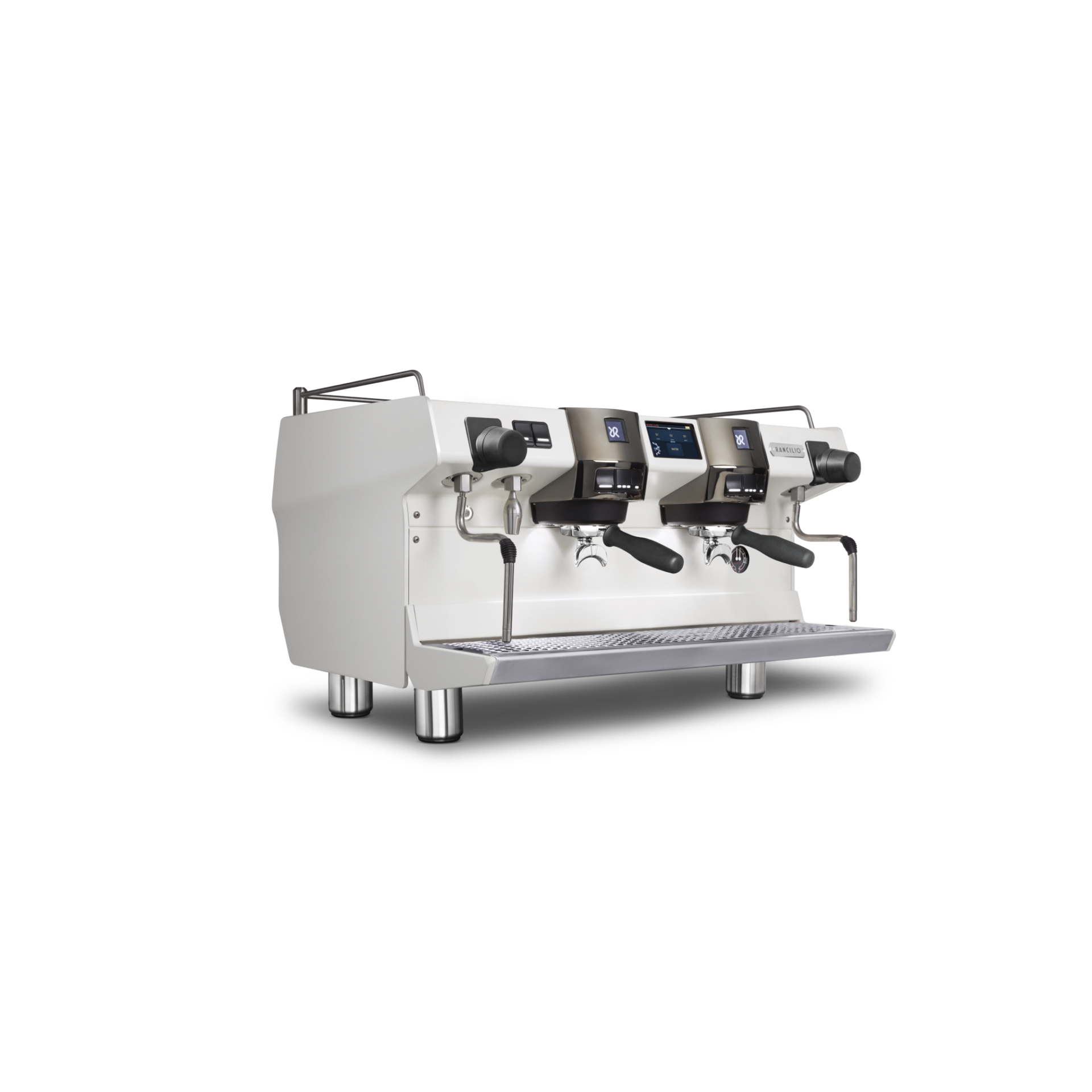

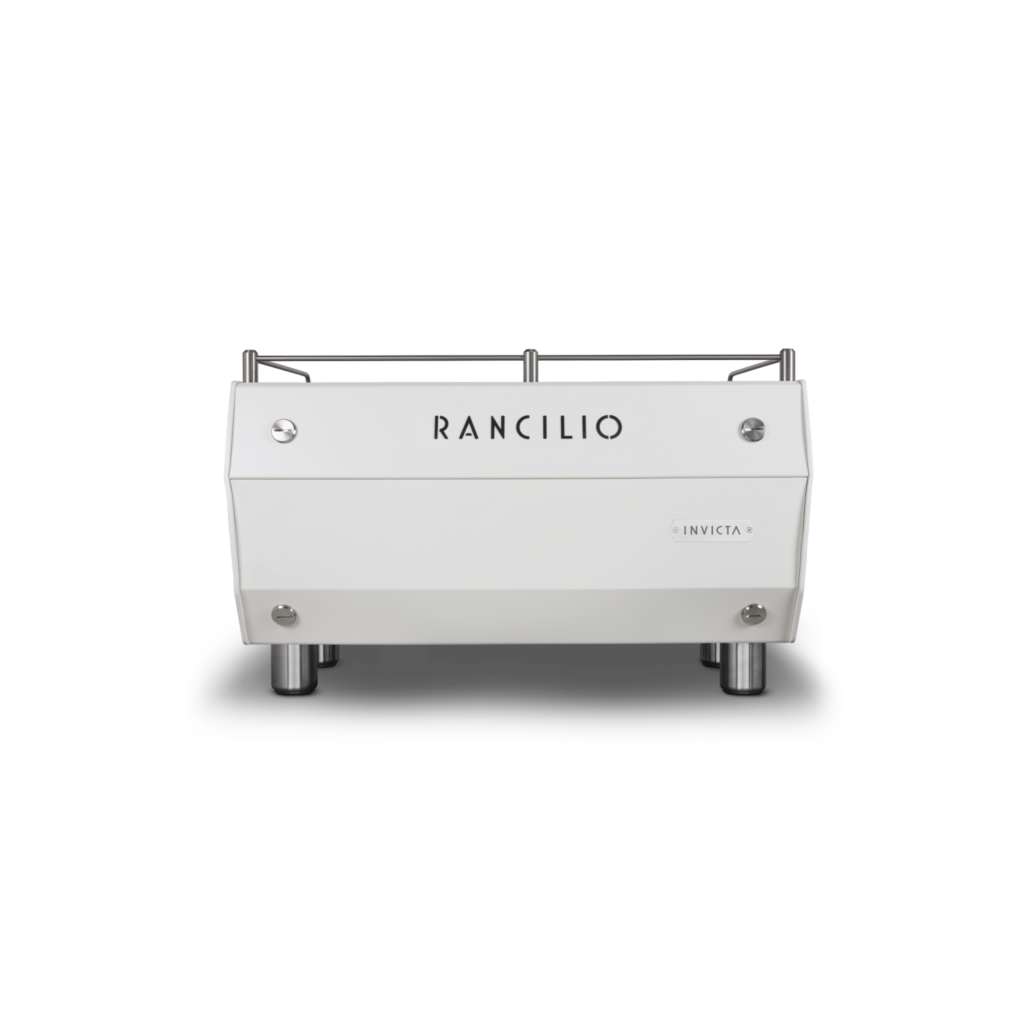

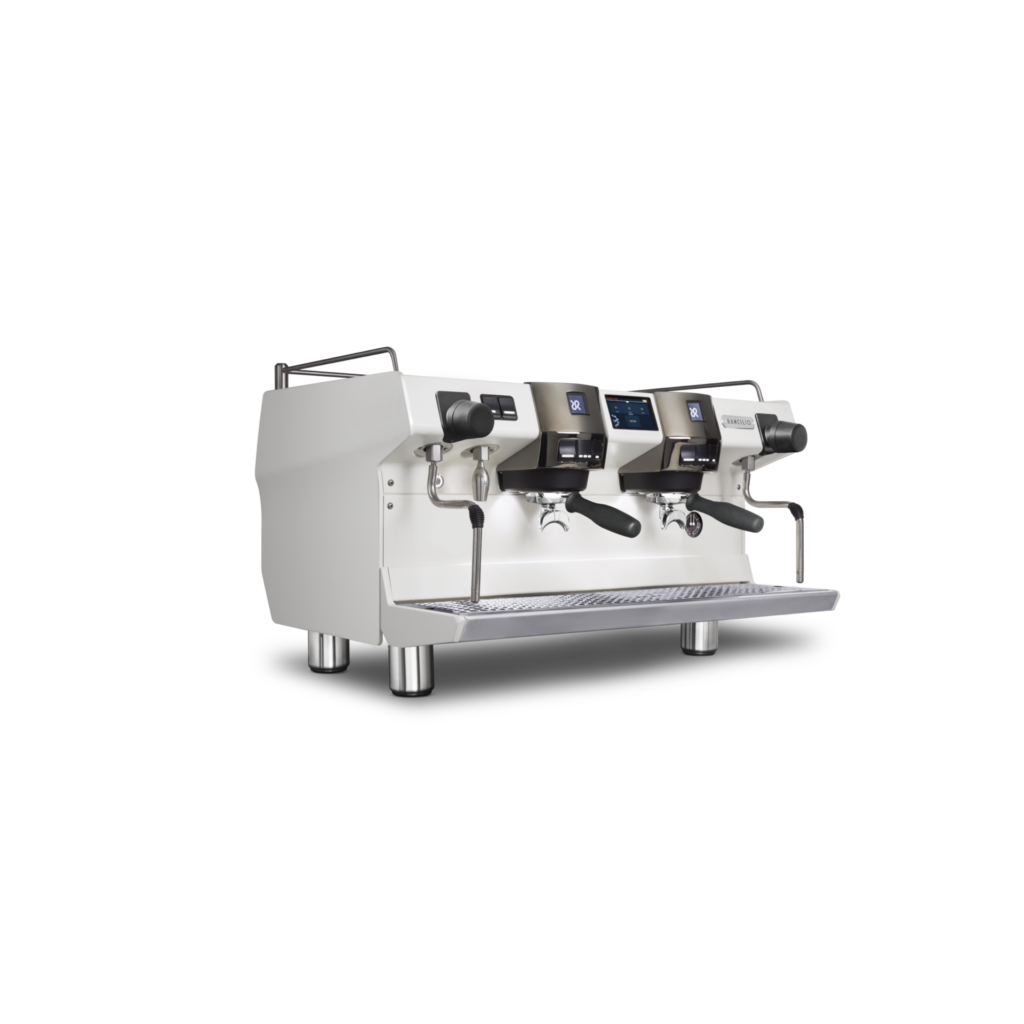

Invicta

Invicta is the reliable, stable and easy-to-use single boiler espresso machine with a modern, no-frills design.

Variations
Colors
Colors

Technical specifications

  • Standard
  • Optional
Dimensions
  • 1057 mm / 41.61 inch
  • 450 mm / 17.72 inch
  • 600 mm / 23.62 inch
  • 90 kg / 198.41 lb
  • 80*-100-120 / 3*-4-5
Interface and operations
  • 4.3''
  • Per group
Brewing technology
  • Ergonomic portafilter

    The chrome-plated brass portafilter, with an ergonomic handle designed to balance the weight, holds coffee filters up to a capacity of 21 g, ensures stability when pressing, and eases wrist movements for the barista. The portafilter handles may be personalized.

  • Steady Brew (SB)

    Rancilio Steady Brew (SB) technology is the evolution of the traditional thermosiphon system and introduces a set of innovative features designed to improve the performance of all single-boiler espresso machines. By keeping the water temperature stable during extraction, Steady Brew guarantees excellent thermal stability, reliability and maximum repeatability, both during busy periods and in low usage conditions. Rancilio Patented Technology.

  • T-Switch

    Thanks to the 4-position T-Switch knob, a different extraction temperature can be set for each group, even for single boiler coffee machines. With the boiler adjusted to 1.0 bar, a temperature of approx. 88°C, 93°C, 96°C or 98°C can be set on each group and the right extraction temperature for each type of coffee is always available. The T-Switch can only be adjusted by specialised technicians during installation by removing the cup warmer.

  • Brass
Water
  • X-Tea

    Baristas can programme water dosages and temperature levels via the interface.
    Rancilio Patented Technology

Steam
  • Cool touch steam wand

    The cool touch steam wand is thermally insulated with a double-layered protective coating.

  • Yes
Cup warmer
  • Cup warmer

    The cup warmer keeps all espresso and cappuccino cups at the right temperature at all times.

  • Temperature sensor
Power
  • 220 – 240 V~ / 380-415V3N~, 50–60 Hz 5400 W
  • Fixed water connection
Boiler
  • 16 l / 3.5 gal UK
Operations
  • Height-Adjustable Drip Tray
Design
  • Ergonomic Portafilter

    The chrome-plated brass portafilter, with an ergonomic handle designed to balance the weight, holds coffee filters up to a capacity of 21 g, ensures stability when pressing, and eases wrist movements for the barista. The portafilter handles may be personalized.

  • Led lights

    White LED lights positioned under the group heads provide excellent illumination for the work area.

Green
  • ABM

    ABM is a specific software developed to improve the performance of the machine in conditions of intensive use. When simultaneously brewing espresso, dispensing water and steaming milk, ABM switches on the heating element to pre-empt any drops in pressure under the preset value, thus preventing drops in temperature to ensure constant heating levels.
    Control of the boiler pressure is optimised in the case of the intensive and simultaneous use of multiple group heads. In these cases, in order to prevent the pressure from dropping below a minimum value of 0.5 bar, ABM can stop water from being dispensed until the boiler pressure returns to a suitable level.
    ABM also allows for control of the machine’s power consumption, reducing it to 2/3 of the normal value where power availability is low.
    For espresso machines equipped with the iSteam wand, ABM also improves steam delivery performance by increasing the power of the heating element in the boiler, allowing it to produce more heat and reduce drops in pressure during milk frothing.
    Rancilio Patented Technology

  • Auto ON-OFF

    It is possible to set the automatic on and off times for the machine (Classe 11, Classe 20) or set the automatic on time and the power-on hours (Classe 9, Classe 7) for each day of the week.

Cleaning & maintenance
  • Advanced Diagnostics

    Thanks to the Advanced Diagnostic system, technical intervention times are reduced to a minimum. The “Technical” menu includes a “Service” function allowing users to test all the machine’s systems, to simply tap on the interface to check all components are in good working order, and to pinpoint faults or technical problems without having to inspect internal elements.

  • Easy clean

    Easy Clean manages the cleaning process of the group heads, so it can perform it all automatically. The barista need only start the cycle, and the machine will automatically carry out the washing and rinsing operations.
    For all models (except the Classe 5 units), Easy Clean also allows you to schedule a daily alarm (3 alarms for the Classe 11) to warn the user of the need for a cleaning cycle, set an optional block on the machine in the event of a cleaning cycle, and view the history of all cleaning cycles performed.

  • Snap&Share

    Snap&Share is a QR code reader app that allows users to share the technical settings of their espresso machine, keep track of maintenance operations, monitor consumption, and register new products to activate the warranty.

Additional Optionals
  • Connect

    Connect is a powerful IoT solution developed by Rancilio Group, to gather and easy analyze all the value relevant data generated by a single coffee machine or an entire fleet. Via a customizable dashboard with widgets, tables and graphs, Connect gives you a ready to use digital toolkit, to monitor key performance parameters in real time and empower your whole coffee business.

    DISCOVER MORE

  • Wood Kit

    Wooden Handle Portafilter + Wooden Steam Lever Handle.

Dimensions
  • 817 mm / 32.16 inch
  • 450 mm / 17.72 inch
  • 600 mm / 23.62 inch
  • 75 kg / 165.35 lb
  • 80*-100-120 / 3*-4-5
Interface and operations
  • 4.3''
  • Per group
Brewing technology
  • Ergonomic portafilter

    The chrome-plated brass portafilter, with an ergonomic handle designed to balance the weight, holds coffee filters up to a capacity of 21 g, ensures stability when pressing, and eases wrist movements for the barista. The portafilter handles may be personalized.

  • Steady Brew (SB)

    Rancilio Steady Brew (SB) technology is the evolution of the traditional thermosiphon system and introduces a set of innovative features designed to improve the performance of all single-boiler espresso machines. By keeping the water temperature stable during extraction, Steady Brew guarantees excellent thermal stability, reliability and maximum repeatability, both during busy periods and in low usage conditions. Rancilio Patented Technology.

  • T-Switch

    Thanks to the 4-position T-Switch knob, a different extraction temperature can be set for each group, even for single boiler coffee machines. With the boiler adjusted to 1.0 bar, a temperature of approx. 88°C, 93°C, 96°C or 98°C can be set on each group and the right extraction temperature for each type of coffee is always available. The T-Switch can only be adjusted by specialised technicians during installation by removing the cup warmer.

  • Brass
Water
  • X-Tea

    Baristas can programme water dosages and temperature levels via the interface.
    Rancilio Patented Technology

Steam
  • Cool touch steam wand

    The cool touch steam wand is thermally insulated with a double-layered protective coating.

  • Yes
Cup warmer
  • Cup warmer

    The cup warmer keeps all espresso and cappuccino cups at the right temperature at all times.

  • Temperature sensor
Power
  • 220 – 240 V~ / 380-415V3N~, 50–60 Hz 4600 W
  • Fixed water connection
Boiler
  • 11 l / 2.4 gal UK
Operations
  • Height-Adjustable Drip Tray
Design
  • Ergonomic Portafilter

    The chrome-plated brass portafilter, with an ergonomic handle designed to balance the weight, holds coffee filters up to a capacity of 21 g, ensures stability when pressing, and eases wrist movements for the barista. The portafilter handles may be personalized.

  • Led lights

    White LED lights positioned under the group heads provide excellent illumination for the work area.

Green
  • ABM

    ABM is a specific software developed to improve the performance of the machine in conditions of intensive use. When simultaneously brewing espresso, dispensing water and steaming milk, ABM switches on the heating element to pre-empt any drops in pressure under the preset value, thus preventing drops in temperature to ensure constant heating levels.
    Control of the boiler pressure is optimised in the case of the intensive and simultaneous use of multiple group heads. In these cases, in order to prevent the pressure from dropping below a minimum value of 0.5 bar, ABM can stop water from being dispensed until the boiler pressure returns to a suitable level.
    ABM also allows for control of the machine’s power consumption, reducing it to 2/3 of the normal value where power availability is low.
    For espresso machines equipped with the iSteam wand, ABM also improves steam delivery performance by increasing the power of the heating element in the boiler, allowing it to produce more heat and reduce drops in pressure during milk frothing.
    Rancilio Patented Technology

  • Auto ON-OFF

    It is possible to set the automatic on and off times for the machine (Classe 11, Classe 20) or set the automatic on time and the power-on hours (Classe 9, Classe 7) for each day of the week.

Cleaning & maintenance
  • Advanced Diagnostics

    Thanks to the Advanced Diagnostic system, technical intervention times are reduced to a minimum. The “Technical” menu includes a “Service” function allowing users to test all the machine’s systems, to simply tap on the interface to check all components are in good working order, and to pinpoint faults or technical problems without having to inspect internal elements.

  • Easy clean

    Easy Clean manages the cleaning process of the group heads, so it can perform it all automatically. The barista need only start the cycle, and the machine will automatically carry out the washing and rinsing operations.
    For all models (except the Classe 5 units), Easy Clean also allows you to schedule a daily alarm (3 alarms for the Classe 11) to warn the user of the need for a cleaning cycle, set an optional block on the machine in the event of a cleaning cycle, and view the history of all cleaning cycles performed.

  • Snap&Share

    Snap&Share is a QR code reader app that allows users to share the technical settings of their espresso machine, keep track of maintenance operations, monitor consumption, and register new products to activate the warranty.

Additional Optionals
  • Connect

    Connect is a powerful IoT solution developed by Rancilio Group, to gather and easy analyze all the value relevant data generated by a single coffee machine or an entire fleet. Via a customizable dashboard with widgets, tables and graphs, Connect gives you a ready to use digital toolkit, to monitor key performance parameters in real time and empower your whole coffee business.

    DISCOVER MORE

  • Wood Kit

    Wooden Handle Portafilter + Wooden Steam Lever Handle.
