Traditional Espresso Machines

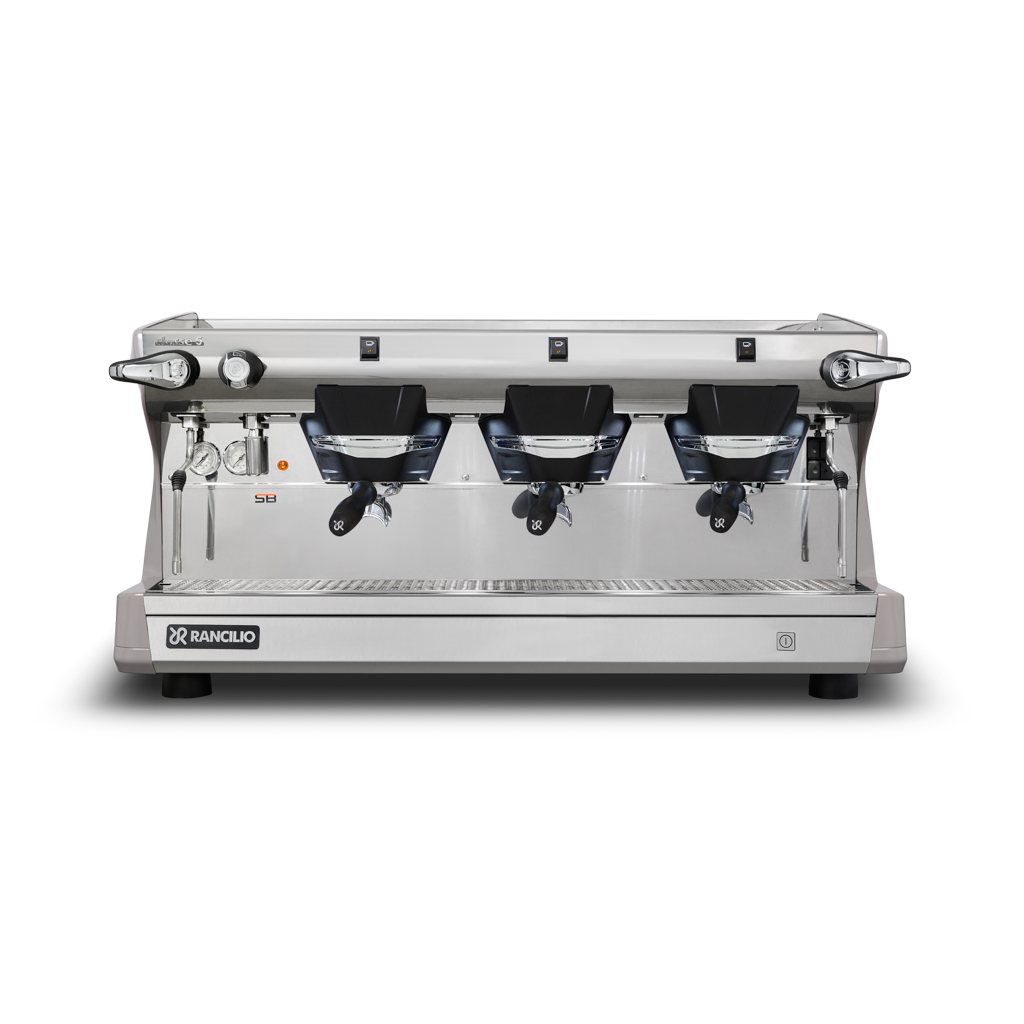

Classe 5 S

Single-boiler espresso machine available in 1, 2, 3 groups, 1 group with tank (1GRT), 2 groups compact (2GRC). All versions feature semi-automatic dosing (S). Steady Brew (SB) technology is available for all versions, except 1GR and 1GR TALL.

Groupheads
Version Semiautomatic
Version Semiautomatic
Version Semiautomatic
Version Semiautomatic
Colors
Colors
Colors
Colors

Technical specifications

  • Standard
  • Optional
Dimensions
  • 410 mm / 16.14 inch
  • 520 mm / 20.47 inch
  • 539 mm / 21.22 inch
  • 37 kg / 81.57 lb
  • Yes
  • 80 mm / 3 inch
Brewing technology
  • Brass
Water
  • Hot water wand
Steam
  • iSteam

    The iSteam automatic steam wand features two buttons, both of which can be programmed with the following functions: “Cappuccino”, to heat and froth milk, or “Latte”, to heat only.
    Rancilio Patented Technology.

  • Steam wand
Power
  • 120V~,60Hz 1,8kW 220-240V~,50-60 Hz 2,05 kW
  • Fixed water connection
Hydraulic circuit
  • 4 liter
Design
  • Ergonomic Portafilter

    The chrome-plated brass portafilter, with an ergonomic handle designed to balance the weight, holds coffee filters up to a capacity of 21 g, ensures stability when pressing, and eases wrist movements for the barista. The portafilter handles may be personalized.

  • LED lights
Cleaning & maintenance
  • Hydro Hub
Additional Optionals
  • Gas heating

    The gas heating system allows for the espresso machine to be used even when there is no electricity.

  • Pods&Caps

    Thanks to the Pods&Caps kit, all Rancilio espresso machines can be used with coffee pods and capsules (according to available systems).

Dimensions
  • 771 mm / 30.35 inch
  • 520 mm / 20.47 inch
  • 539 mm / 21.22 inch
  • 74 kg / 163.14 lb
  • Yes
  • 80 mm / 3 inch
Brewing technology
  • Steady Brew (SB)

    Rancilio Steady Brew (SB) technology is the evolution of the traditional thermosiphon system and introduces a set of innovative features designed to improve the performance of all single-boiler espresso machines. By keeping the water temperature stable during extraction, Steady Brew guarantees excellent thermal stability, reliability and maximum repeatability, both during busy periods and in low usage conditions. Rancilio Patented Technology.

  • Brass
Water
  • Hot water wand
Steam
  • C-lever

    The C-lever steam valve is operated by rotating the knob just 25°. Turning it upwards, the valve stays open. Turning it downwards, the valve opens and automatically closes when released.

  • iSteam

    The iSteam automatic steam wand features two buttons, both of which can be programmed with the following functions: “Cappuccino”, to heat and froth milk, or “Latte”, to heat only.
    Rancilio Patented Technology.

  • Steam wand
Power
  • 110V ~, 60 Hz 2.90 kW 220-240 V~/ 380-415 V3N~, 50-60 Hz 4.75 kW 208/220-240 V~, 60 Hz 4.00/4.95 kW
  • Fixed water connection
Hydraulic circuit
  • 11 liter
Design
  • Ergonomic Portafilter

    The chrome-plated brass portafilter, with an ergonomic handle designed to balance the weight, holds coffee filters up to a capacity of 21 g, ensures stability when pressing, and eases wrist movements for the barista. The portafilter handles may be personalized.

  • LED lights
Cleaning & maintenance
  • Hydro Hub
Additional Optionals
  • Cup Warmer

    The cup warmer keeps all espresso and cappuccino cups at the right temperature at all times.

  • Gas heating

    The gas heating system allows for the espresso machine to be used even when there is no electricity.

  • Pods&Caps

    Thanks to the Pods&Caps kit, all Rancilio espresso machines can be used with coffee pods and capsules (according to available systems).

Dimensions
  • 611 mm / 24.05 inch
  • 520 mm / 20.47 inch
  • 539 mm / 21.22 inch
  • 55 kg / 121.25 lb
  • Yes
  • 80 mm / 3 inch
Brewing technology
  • Steady Brew (SB)

    Rancilio Steady Brew (SB) technology is the evolution of the traditional thermosiphon system and introduces a set of innovative features designed to improve the performance of all single-boiler espresso machines. By keeping the water temperature stable during extraction, Steady Brew guarantees excellent thermal stability, reliability and maximum repeatability, both during busy periods and in low usage conditions. Rancilio Patented Technology.

  • Brass
Water
  • Hot water wand
Steam
  • C-lever

    The C-lever steam valve is operated by rotating the knob just 25°. Turning it upwards, the valve stays open. Turning it downwards, the valve opens and automatically closes when released.

  • iSteam

    The iSteam automatic steam wand features two buttons, both of which can be programmed with the following functions: “Cappuccino”, to heat and froth milk, or “Latte”, to heat only.
    Rancilio Patented Technology.

  • Steam wand
Power
  • 220-240 V~/ 380-415 V3N~, 50-60 Hz 3.55 kW 208/220-240 V~, 60 Hz 2.95/3.57 kW
  • Fixed water connection
Hydraulic circuit
  • 5 liter
Design
  • Ergonomic Portafilter

    The chrome-plated brass portafilter, with an ergonomic handle designed to balance the weight, holds coffee filters up to a capacity of 21 g, ensures stability when pressing, and eases wrist movements for the barista. The portafilter handles may be personalized.

  • LED lights
Cleaning & maintenance
  • Hydro Hub
Additional Optionals
  • Cup Warmer

    The cup warmer keeps all espresso and cappuccino cups at the right temperature at all times.

  • Gas heating

    The gas heating system allows for the espresso machine to be used even when there is no electricity.

  • Pods&Caps

    Thanks to the Pods&Caps kit, all Rancilio espresso machines can be used with coffee pods and capsules (according to available systems).

Dimensions
  • 1011 mm / 39.80 inch
  • 520 mm / 20.47 inch
  • 539 mm / 21.22 inch
  • 85 kg / 187.39 lb
  • Yes
  • 80 mm / 3 inch
Brewing technology
  • Steady Brew (SB)

    Rancilio Steady Brew (SB) technology is the evolution of the traditional thermosiphon system and introduces a set of innovative features designed to improve the performance of all single-boiler espresso machines. By keeping the water temperature stable during extraction, Steady Brew guarantees excellent thermal stability, reliability and maximum repeatability, both during busy periods and in low usage conditions. Rancilio Patented Technology.

  • Brass
Water
  • Hot water wand
Steam
  • C-lever

    The C-lever steam valve is operated by rotating the knob just 25°. Turning it upwards, the valve stays open. Turning it downwards, the valve opens and automatically closes when released.

  • iSteam

    The iSteam automatic steam wand features two buttons, both of which can be programmed with the following functions: “Cappuccino”, to heat and froth milk, or “Latte”, to heat only.
    Rancilio Patented Technology.

  • Steam wand
Power
  • 220-240 V~/ 380-415 V3N~, 50-60 Hz 6.64 kW 208/220-240 V~, 60 Hz 5.50/6.72 kW
  • Fixed water connection
Hydraulic circuit
  • 16 liter
Design
  • Ergonomic Portafilter

    The chrome-plated brass portafilter, with an ergonomic handle designed to balance the weight, holds coffee filters up to a capacity of 21 g, ensures stability when pressing, and eases wrist movements for the barista. The portafilter handles may be personalized.

  • LED lights
Cleaning & maintenance
  • Hydro Hub
Additional Optionals
  • Cup Warmer

    The cup warmer keeps all espresso and cappuccino cups at the right temperature at all times.

  • Gas heating

    The gas heating system allows for the espresso machine to be used even when there is no electricity.

  • Pods&Caps

    Thanks to the Pods&Caps kit, all Rancilio espresso machines can be used with coffee pods and capsules (according to available systems).
