Traditional Espresso Machines

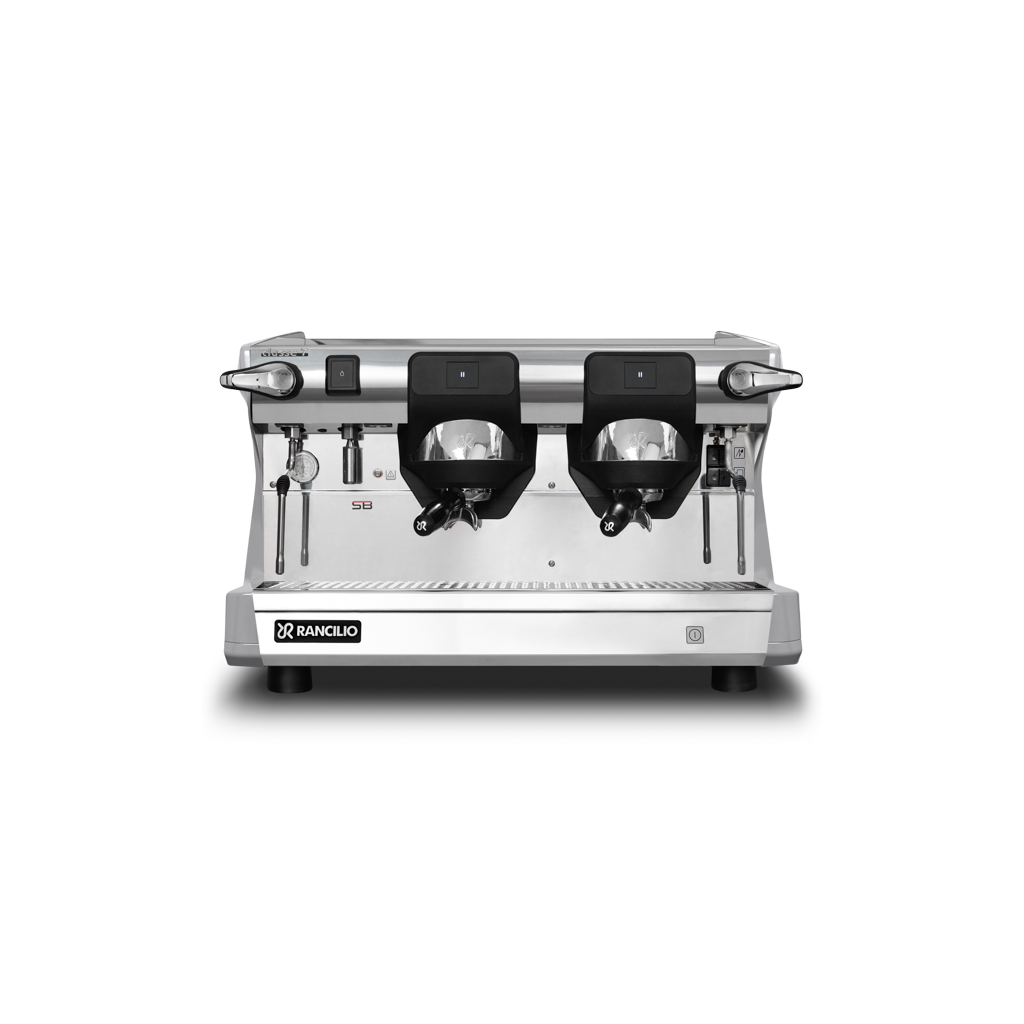

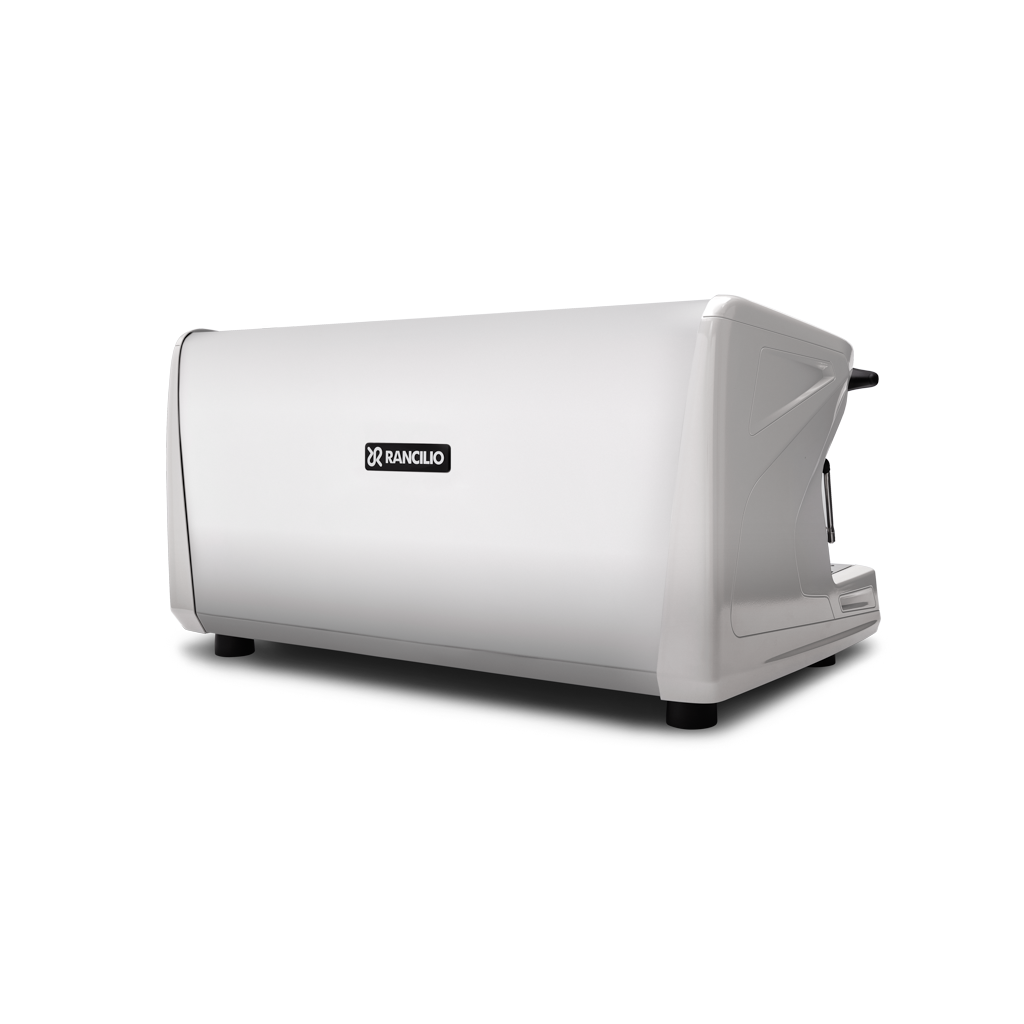

Classe 7 S

Single-boiler espresso machine available in 2 or 3 groups with semi-automatic dosing (S) Steady Brew (SB) technology.

Groupheads
Version Semiautomatic
Version Semiautomatic
Colors
Colors

Technical specifications

  • Standard
  • Optional
Dimensions
  • 770 mm / 30.31 inch
  • 520 mm / 20.47 inch
  • 540 mm / 21.26 inch
  • 74 kg / 163.14 lb
  • Yes
  • 80 mm / 3 inch
Interface and operations
Brewing technology
  • Path 2 Created with Sketch.
    Steady Brew (SB)

    Rancilio Steady Brew (SB) technology is the evolution of the traditional thermosiphon system and introduces a set of innovative features designed to improve the performance of all single-boiler espresso machines. By keeping the water temperature stable during extraction, Steady Brew guarantees excellent thermal stability, reliability and maximum repeatability, both during busy periods and in low usage conditions. Rancilio Patented Technology.

  • Path 2 Created with Sketch.
    T-Switch

    Thanks to the 4-position T-Switch knob, a different extraction temperature can be set for each group, even for single boiler coffee machines. With the boiler adjusted to 1.0 bar, a temperature of approx. 88°C, 93°C, 96°C or 98°C can be set on each group and the right extraction temperature for each type of coffee is always available. The T-Switch can only be adjusted by specialised technicians during installation by removing the cup warmer.

  • Brass
Water
  • Path 2 Created with Sketch.
    Hot Water Economizer
  • Path 2 Created with Sketch.
    Hot water wand
Steam
  • Path 2 Created with Sketch.
    C-lever

    The C-lever steam valve is operated by rotating the knob just 25°. Turning it upwards, the valve stays open. Turning it downwards, the valve opens and automatically closes when released.

  • Path 2 Created with Sketch.
    Cool touch steam wand

    The cool touch steam wand is thermally insulated with a double-layered protective coating.

  • Path 2 Created with Sketch.
    iSteam

    The iSteam automatic steam wand features two buttons, both of which can be programmed with the following functions: “Cappuccino”, to heat and froth milk, or “Latte”, to heat only.
    Rancilio Patented Technology.

  • Path 2 Created with Sketch.
    Steam wand
Power
  • 208/220-240 V~, 60 Hz 2.9 kW 220-240 V~/380-415 V3N~, 50-60 Hz 4.95 kW
  • Fixed water connection
Hydraulic circuit
  • 11 liter
Design
  • Path 2 Created with Sketch.
    Ergonomic Portafilter

    The chrome-plated brass portafilter, with an ergonomic handle designed to balance the weight, holds coffee filters up to a capacity of 21 g, ensures stability when pressing, and eases wrist movements for the barista. The portafilter handles may be personalized.

  • Path 2 Created with Sketch.
    LED lights

    White LED lights positioned under the group heads provide excellent illumination for the work area.

Cleaning & maintenance
  • Path 2 Created with Sketch.
    Easy clean

    Easy Clean manages the cleaning process of the group heads, so it can perform it all automatically. The barista need only start the cycle, and the machine will automatically carry out the washing and rinsing operations.
    For all models (except the Classe 5 units), Easy Clean also allows you to schedule a daily alarm (3 alarms for the Classe 11) to warn the user of the need for a cleaning cycle, set an optional block on the machine in the event of a cleaning cycle, and view the history of all cleaning cycles performed.

Additional Optionals
  • Path 2 Created with Sketch.
    Cup Warmer

    The cup warmer keeps all espresso and cappuccino cups at the right temperature at all times.

  • Path 2 Created with Sketch.
    Pods&Caps

    Thanks to the Pods&Caps kit, all Rancilio espresso machines can be used with coffee pods and capsules (according to available systems).

Dimensions
  • 1010 mm / 39.76 inch
  • 520 mm / 20.47 inch
  • 540 mm / 21.26 inch
  • 85 kg / 187.39 lb
  • Yes
  • 80 mm / 3 inch
Brewing technology
  • Path 2 Created with Sketch.
    Steady Brew (SB)

    Rancilio Steady Brew (SB) technology is the evolution of the traditional thermosiphon system and introduces a set of innovative features designed to improve the performance of all single-boiler espresso machines. By keeping the water temperature stable during extraction, Steady Brew guarantees excellent thermal stability, reliability and maximum repeatability, both during busy periods and in low usage conditions. Rancilio Patented Technology.

  • Path 2 Created with Sketch.
    T-Switch

    Thanks to the 4-position T-Switch knob, a different extraction temperature can be set for each group, even for single boiler coffee machines. With the boiler adjusted to 1.0 bar, a temperature of approx. 88°C, 93°C, 96°C or 98°C can be set on each group and the right extraction temperature for each type of coffee is always available. The T-Switch can only be adjusted by specialised technicians during installation by removing the cup warmer.

  • Brass
Water
  • Path 2 Created with Sketch.
    Hot Water Economizer
  • Path 2 Created with Sketch.
    Hot water wand
Steam
  • Path 2 Created with Sketch.
    C-lever

    The C-lever steam valve is operated by rotating the knob just 25°. Turning it upwards, the valve stays open. Turning it downwards, the valve opens and automatically closes when released.

  • Path 2 Created with Sketch.
    Cool touch steam wand

    The cool touch steam wand is thermally insulated with a double-layered protective coating.

  • Path 2 Created with Sketch.
    iSteam

    The iSteam automatic steam wand features two buttons, both of which can be programmed with the following functions: “Cappuccino”, to heat and froth milk, or “Latte”, to heat only.
    Rancilio Patented Technology.

  • Path 2 Created with Sketch.
    Steam wand
Power
  • 220-240 V~/380-415 V3N~, 50-60 Hz 6.75 kW
  • Fixed water connection
Hydraulic circuit
  • 16 liter
Design
  • Path 2 Created with Sketch.
    Ergonomic Portafilter

    The chrome-plated brass portafilter, with an ergonomic handle designed to balance the weight, holds coffee filters up to a capacity of 21 g, ensures stability when pressing, and eases wrist movements for the barista. The portafilter handles may be personalized.

  • Path 2 Created with Sketch.
    LED lights

    White LED lights positioned under the group heads provide excellent illumination for the work area.

Cleaning & maintenance
  • Path 2 Created with Sketch.
    Easy clean

    Easy Clean manages the cleaning process of the group heads, so it can perform it all automatically. The barista need only start the cycle, and the machine will automatically carry out the washing and rinsing operations.
    For all models (except the Classe 5 units), Easy Clean also allows you to schedule a daily alarm (3 alarms for the Classe 11) to warn the user of the need for a cleaning cycle, set an optional block on the machine in the event of a cleaning cycle, and view the history of all cleaning cycles performed.

Additional Optionals
  • Path 2 Created with Sketch.
    Cup Warmer

    The cup warmer keeps all espresso and cappuccino cups at the right temperature at all times.

  • Path 2 Created with Sketch.
    Pods&Caps

    Thanks to the Pods&Caps kit, all Rancilio espresso machines can be used with coffee pods and capsules (according to available systems).
